Customer Profile
777 Main Street
- 40-story, Class A office building totaling 954,895 rentable square feet
- Located in the heart of downtown Fort Worth
- Owned by F7 Sssm LLC and managed by Cushman & Wakefield, Inc.
Situation
Filtration Upgrade
Cushman & Wakefield of Texas has been a loyal AAF International customer for many years. When Cushman & Wakefield began investigating ways to improve its building efficiency at 777 Main Street in 2009, AAF was there to assist with proven filtration solution options.
The building at this time utilized MERV 8 PerfectPleat® ULTRA filters. In order to obtain a Leadership in Energy and Environmental Design (LEED®) certification for the building, the plaza needed to upgrade its filtration.
Rising energy costs and economic fluctuations are increasing the pressure on commercial buildings to cut energy costs and create more sustainable properties. The LEED Green Building Rating System™, administered by the U.S. Green Building Council, is an internationally accepted benchmark for designing and sustaining green buildings. LEED provides third-party verification that a building is designed and built using strategies aimed at improving performance across all the metrics that matter most: energy savings, water efficiency, CO2 emissions reduction, improved indoor environmental quality, stewardship of resources, and reduction of waste.
LEED also provides building owners and operators the framework for identifying and implementing practical and measurable design, construction, operations, and maintenance solutions. Proper air filtration strategies can contribute to credits toward certification. These strategies involve increasing the efficiency of the air filtration, thereby reducing the particulate being distributed.
Secath Concept, an engineering company located in Paris, contacted AAF to assist in solving air filtration issues that the restaurant was having, especially problems with odour, as offices in the neighborhoods nearby were complaining about pungent odours from rancid cooking oil.
Challenges 1 – Insufficient qualification to obtain LEED certification
Challenges 2 – High Total Cost of Ownership (TCO)
Challenges 3 – Improves filtration in commercial building
A complete survey was done to find economical solutions to upgrade the efficiency level of the current filtration without a significant impact on the budget.
AAF recommended MERV 13 VariCel® M-Pak filters to upgrade efficiency in the large recirculation units inside the building. The dual-density media design of the VariCel M-Pak filter utilizes the full filtering potential of the media and maximises dust holding. Maximised dust holding capacity extends the life of the filter and minimizes operating costs.
Cushman & Wakefield was presented with AAFs’ Total Cost of Ownership (TCO) report comparing the overall costs of the PerfectPleat ULTRA filter in combination with the VariCel M-Pak filter, and the VariCel M-Pak filter alone. The most economical outcome was to install VariCel M-Pak filters without the prefilters. No costly fan modifications were required with this choice, and energy savings would be greater.
Additionally, AAF recommended DriPak® 2000 filters with no prefilter for the new fresh air intakes that were added on the roof. These fresh air intakes are exposed to a great deal of moisture, and DriPak 2000 filters will not block off the airflow if they get wet. This also minimised pressure drop across the filter.
Cushman & Wakefield decided to run a six month trial on air handlers with the heaviest dirt load in the building. The trial revealed they could get one year of life from the VariCel M-Pak filters without using a prefilter.

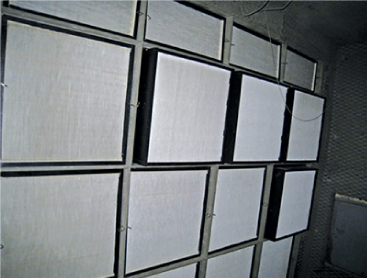

Over a twelve month period, all interior and exterior air handling units in 777 Main Street were refurbished, and all MERV 8 filters were upgraded to either MERV 13 VariCel M-Pak filters or MERV 14 DriPak 2000 filters.
As a result of the improvements, the particulate matter was reduced 62% at 777 Main Street. The industry assumption for this type of improvement is a 40% reduction in absenteeism, due to a reduction in upper respiratory problems for people who work in the building.
U.S. Green Building Council LEED Certified
777 Main Street achieved LEED EB certification in 2009. In addition, the building was awarded the National Air Filter Association (NAFA) Clean Air Award for 2010. The purpose of the Clean Air Award is to recognize leadership and excellence in air filtration by selected air filter users, and to promote the National Air Filtration Association and its member companies.
NAFA
Any facility or company that has demonstrated a concerted effort to provide a clear indoor air environment by using proper filtration and has a minimum score of 52 is eligible for the NAFA award. 777 Main Street scored an astounding 67. In the past, no more than eight facilities per year nationally are recognized for this accomplishment.
Recommended Product & Solution
Commercial Buildings
In commercial office buildings, Indoor Air Quality (IAQ) is a primary concern. The pollution levels in this indoor air can be up to five times higher than outdoor levels, and poor IAQ ranks as one of the top five environmental risks to public health.
VariCel® M-Pak
With the same media area as the traditional 292 mm deep filter in a 149 mm deep design, the VariCel M-Pak filter delivers comparable efficiency, pressure drop and overall performance in a much smaller package.
TCO Diagnostic®
The purpose of TCO Diagnostic is to assist you in selecting the best filters for your air handling systems and to understand their sensitivity to your operating conditions, in order to operate your system in the most optimal and effective manner.
