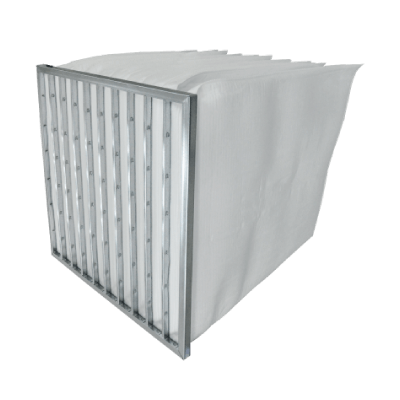

DriPak® NXM
- AAF design – stable tapered pockets for optimum airflow
- Exceptionally low pressure drop for extremely low energy use
- High efficient synthetic media
- Lightweight
Description
INDUSTRIES
Typical applications
Automotive
Commercial Buildings
Data Centres
Food and Beverage
Hospitality
Industrial
Schools and Universities
The Dripak NX is designed with tapered pockets from synthetic media with an extended surface area. The pockets feature a high degree of stiffness so that it can retain its shape for easy installation, high dust holding capacity, low energy consumption and increase its overall filtration performance. The Dripak NX media properties result in a superior discharge efficiency in comparison with the traditional synthetic media.
| EN779 | F7 – F9 |
| ASHRAE 52.2 | MERV 13, 15 |
| ISO 16890 | ePM2.5 : 55%, ePM1 : 85% |
| Filter Depth (mm) | 510, 640 |
| Media Type | Synthetic |
| Frame Material | Galvanised Steel |
| Special Size Available | Yes |
| Antimicrobial Available | No |
| Single Header | Yes |
| Recomm. Final Resistance | 450Pa |
| Max. Operating Temperature | 66˚C |
