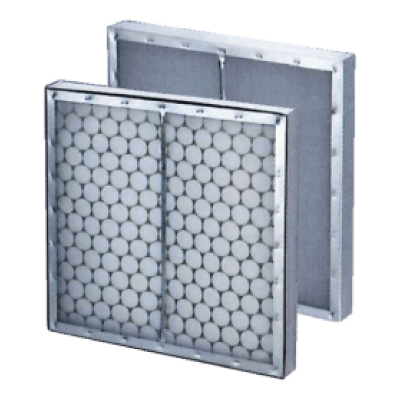

NIPPON MUKI-CKR Filter (Heat resistant prefilter)

Heat resistant pre-filter made of fiberglass. 2 types with different basis weight are available.

Category:
Description
INDUSTRIES

Typical applications

Pharmaceutical
Automotive
Microelectronics
Industrial

Benefits & Features

Typical Characteristics



Specifications

EN1822H13,14
Filter Depth (mm)149,292
Media TypeFibreglass
Frame MaterialStainless Steel
Separator StyleAluminium
Gasket MaterialRed Silicone Gasket
SealantWhite, Red Silicone
Special Size AvailableYes
Antimicrobial AvailableNo
Header TypeNone Header
Recommended Final Resistance750 Pa
Max Operating Temperature180ºC, 260ºC
Download Brochure

or
Enquire Now

Related products

Close

AstroCel® I HT

  • Individually tested for certified performance
  • Available in a variety of metal cell sides and efficiencies
  • High temperature models available up to 260º C
  • High capacity option for higher airflow
  • Available in gasket seal
Close

NIPPON MUKI – 350ºC heat-resistant

  • No silicone is used
  • Ultra heat-resistant filter for continuous operation up to 350ºC
Close

PREpleat® HT HC

  • Rated at 260ºC
  • Ultra-fine high loft microglass media
  •  Aluminized steel U-channel frame
  •  Available in 44 mm and 95 mm depths
  •  MERV 8
