S-Trap HD
- Industry leading capacity
- High filtration performance with lower pressure drop
- Heavy duty welded and painted construction
- Self-cleaning
- Painted mild steel or stainless steel options
- Quick & easy removable inlet grille and filtration elements
INDUSTRIES
Typical applications
Commercial Building
Food & Beverage
Healthcare
Hospitality
Industrial
Marine
Nuclear
Pharmaceutical
Schools & Universities
Heavy Duty Performance
Built to withstand harsh environments, rust free, self-cleaning, rigid design and equipped with long-lasting materials
Components
Casing and dust chute are welded heavy duty painted mild steel or stainless steel, other components are individually hot-dip galvanised steel or stainless steel.
Design
Smart design to optimise the space, weight and installation. Easy to remove inlet grill and filtration elements for convenient inspection. Dust chute can be ordered with flange positioned at the bottom centre, right side, left side or both sides of the S-trap. Flange on both sides is used when a standby secondary fan is required.
Material
S-Trap HD can be produced in different material based on customer preference.
- Mild Steel + Paint
- Stainless Steel
| Housing Height (mm) | 988 – 2,496 |
| Number of Filter Element | 1-40 |

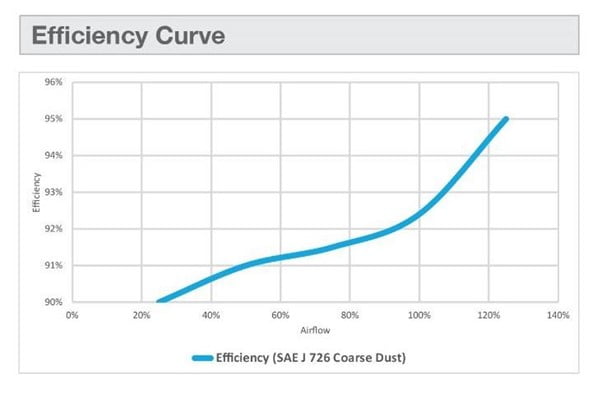

| Arrestance | 92% |
| Housing Material (Standard) | Galvanised Steel |
| Housing Material (Optional) | Stainless Steel |
| Dust Chute | Center, Left, Right, Both Sides |
| Special Size Available | Yes |
| Other Optionals | Secondary Fan, Control Panel, Manometer, Weather Hood, Support Legs |
or
Enquire Now
