VariSorb® XL
- Energy efficient mini-pleat design
- Corrosion-free, non-metal construction
- Easy to retrofit particulate installations
- Fully incinerable
- Available in SAAFCarb™, SAAFCarb™ MA and SAAFCarb™ MB
- Low pressure drop
INDUSTRIES
Typical applications
Airports
Healthcare
Hospitality
Industrial plant offices and laboratories
Construction

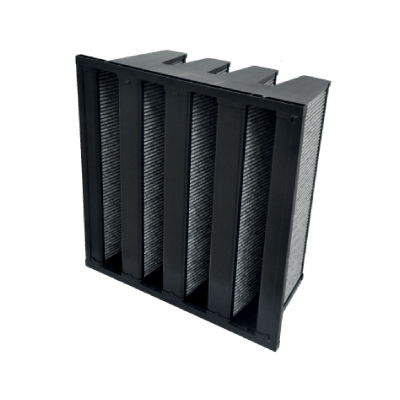

VariSorb® XL filters consist of filter elements assembled in a V-bank configuration in High Impact Polystyrene (HIPS) end caps, and Acrylonitrile Butadiene Styrene (ABS) profiles. The header and cell sides provide a sturdy construction that resists damage during shipping, handling, and operation. The absence of metal components makes VariSorb® XL filter fully incinerable.
Additional Features
VariSorb® XL filters replace existing HVAC filters of the same type with no changes required for frames or latches. They are packed and sealed in individual polyethylene bags to preserve capacity and cleanliness.
Media
The VariSorb® XL filter features a pleated media consisting of very high activity carbon particles bonded into a matrix of mini carbon granulate embedded between two non-woven synthetic layers. The very small carbon granules, unlike traditional granular bed chemical filters, provide a granular microstructure that ensures a much higher effective area per pound of media, resulting in a high spontaneity of adsorption. Combined with the dense packing of the microstructure, this creates a tortuous path for the contaminant, resulting in a high yield for the filter. The fiber matrix maximizes the exposure of the sorbent to the gas while securely bonding it within the media. Dusting is nearly eliminated, and pressure drop is minimized.
| Filter Depth (inches) | 292 |
| Media Type | Carbon, Impregnated Carbon |
| Frame Material | Plastic |
| Special Size Available | No |
| Antimicrobial Available | No |
| Header Type | Single Header |
| Recommended Filter Resistance | 375 Pa |
| Max Operating Temperature | 54ºC |
or
Enquire Now
