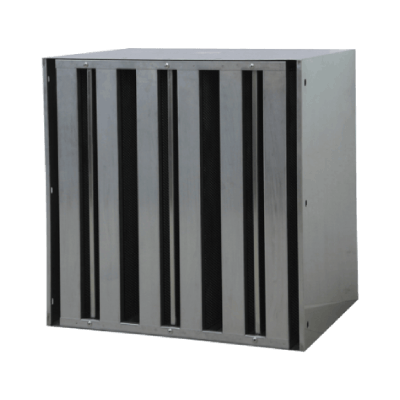

SAAF™ TY Chemical Filter
- Suitable for cleanroom environment
- Low operation cost with replaceable media tray
- Multi-tray filter with pleated media pack
- High removal efficiency with unique mini-pleating technology
- Wide range of media or custom blends for specific application
- No dust and no out-gassing properties
- Easy to install
- Energy efficient
- Low pressure drop
Excellent Performance
SAAF™ TY filters are designed for effective removal of medium and low concentrations of Airborne Molecular Contaminants (AMC) in fresh air and recirculation air handling systems. It is widely used in air handling units for fresh air and return air in cleanroom, at the same time can be used together with Fan Filter Unit (FFU) to protect the process and product against the influence of AMC. The multi-tray pleated media packs are arranged in a V-shaped to utilize maximum amount of media for high air velocity.
Construction
SAAF™ TY chemical filters, with metal cell side and replaceable media trays, are designed to withstand the most demanding applications. SAAF™ TY box structure construction filter comes with factory-ready installation and no special tools are required for media tray installations and replacements. The filter construction in out-gassing free to ensure cleanroom environment and requirements. The strong construction of these filters, with a supported pleat media pack, helps maintain a compact unitized structure under variable air velocities. The interlocked header and cell sides, along the entire length of each side, provide maximum sealing.
Media
SAAF™ TY can be supplied with a wide range of gas specific media or custom blends media which includes activated carbon, impregnated activated carbon, and ion exchange resin. The unique mini-pleating technology causes the contaminants to contact the media 3 times within the filter hence increasing filter removal efficiency at low pressure drop. The filter material is finer and smaller for better AMC contact process to offer higher removal speed.
| Cleanliness Class | ISO Class 6 |
| Filter Depth (mm) | 292 |
| Media Type | Activated Carbon (AC), Impregnated Activated Carbon (IAC), Ion Exchange Resin (IER) |
| Media Material | Mini carbon granules embedded between two non-woven synthetic layers |
| Frame Material (Standard) | Aluminum, Galvanised Steel, Stainless Steel |
| Gasket Sealant (Standard) | EPDM (non out-gassing) |
| Gasket Sealant (Optional) | Polyurethane (non out-gassing) |
| Special Size Available | Yes |
| Header Type | None Header |
| Target Gas | VOC, Acid, Base |
