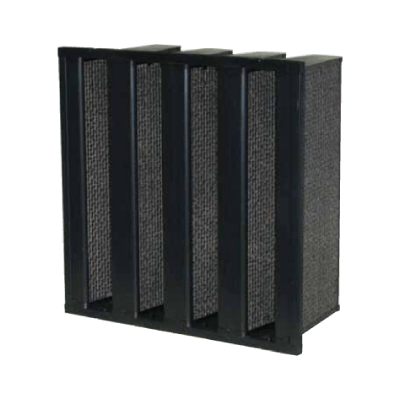

VariSorb® HC

  • High chemical media content
  • Low resistance V-bank design
  • Corrugated honeycomb structure with retaining fine mesh scrim
  • Corrosion-free, non-metal construction
  • Available with SAAFCarb™, SAAFOxidant™, or SAAFBlend™ GP (50/50 Blend)
  • Fully incinerable
Categories: ,
Description

Improve Indoor Air Quality and Odor Removal

The VariSorb® HC filter is designed for the effective removal of common indoor and outdoor gaseous contaminants at high airflows, to help mitigate Indoor Air Quality (IAQ) problems. The VariSorb® HC filter is suitable for retrofitting into existing HVAC systems for specification in new construction, and can be used in equipment designed for 12” depth, single header filters.

Construction

VariSorb® HC filters consist of filter elements assembled in a V-bank configuration in High Impact Polystyrene (HIPS) end caps, and Acrylonitrile Butadiene Styrene (ABS) profiles. The header and cell sides provide a sturdy construction that resists damage during shipping, handling, and operation. The absence of metal components makes VariSorb® HC filter fully incinerable.

Media

Choose from SAAFCarb media of activated carbon, SAAFOxidant media composed of a combination of activated alumina impregnated with potassium permanganate, or a blend of both. The media is contained in panels with a honeycomb structure. A fine mesh scrim on both sides of the panel retains the media granules in the honeycomb. SAAFCarb media effectively removes Volatile Organic Compounds (VOCs), jet and diesel fumes, and hydrocarbons. SAAFOxidant media effectively removes hydrogen sulfide, sulfur oxides, formaldehyde, and nitric oxides. For general purpose air quality control, SAAFBlend GP (50/50) media is recommended.

Filter Depth (mm) 292
Media Type Carbon, Chemical, Blended
Frame Material Plastic
Special Size Available No
Header Type Single Header
Max Operating Temperature 49ºC
